Yanmar’s next-generation range of compact wheeled excavators have been designed from the ground up to offer class-leading performance and maximum productivity. Comprising three proven models – the B75W, B95W and B110W – operators benefit from world-leading engine technology, state-of-the-art in cab equipment and a wide range of attachments and optional extras to ensure complete suitability for the job in hand.
Perfect for construction, civil engineering, landscaping, agricultural and recycling applications, each model delivers outstanding digging, lifting and carrying capabilities. Thanks to Yanmar’s unmatched expertise in compact design, the range is perfectly suited to tight, urban job sites where space comes at a premium.
As with every Yanmar model, the B75W, B95W and B110W set the standards in performance, control, versatility, comfort and safety. The perfect team player for every job site, operators can be confident of a truly world-class solution.
B75W (7,400-7,600kg operating weight) – Efficient, precise and dependable, the B75W is perfect for urban jobsites, highway construction and landscaping projects. Powered by the latest 73hp Yanmar 4TNV98CT turbocharged diesel engine with DPF as standard, the compact model is fuel efficient, environmentally friendly and fully-compliant with EU Stage V emissions legislation.
Delivering 295.5Nm torque @ 1,365rpm, the B75W is extremely powerful and can reach travel speeds of up to 36km/h. With a digging depth of 3,500mm (TPA boom), digging force of 38,000N (at bucket edge), max reach of 6,990mm (TPA boom) and max dumping height of 5,050mm (TPA boom), operators are guaranteed impressive performance for maximum productivity.
An LUDV hydraulic system with four independent circuits mean the operator can simultaneously operate a tilt rotator with a hydraulic quick-hitch system and a hydraulically-driven tool (such as a sorting grab, asphalt cutter or cutting unit). Despite its compact size, this makes the B75W perfect for a wide range of applications.
Thanks to a unique axle design (with 14° pendulum angle), minimum tail swing, laterally installed engine and low centre of gravity, the B75W-5 offers exceptional stability even with the boom fully-extended. Further design benefits include articulated joint with wide angle of articulation for working closely to walls.

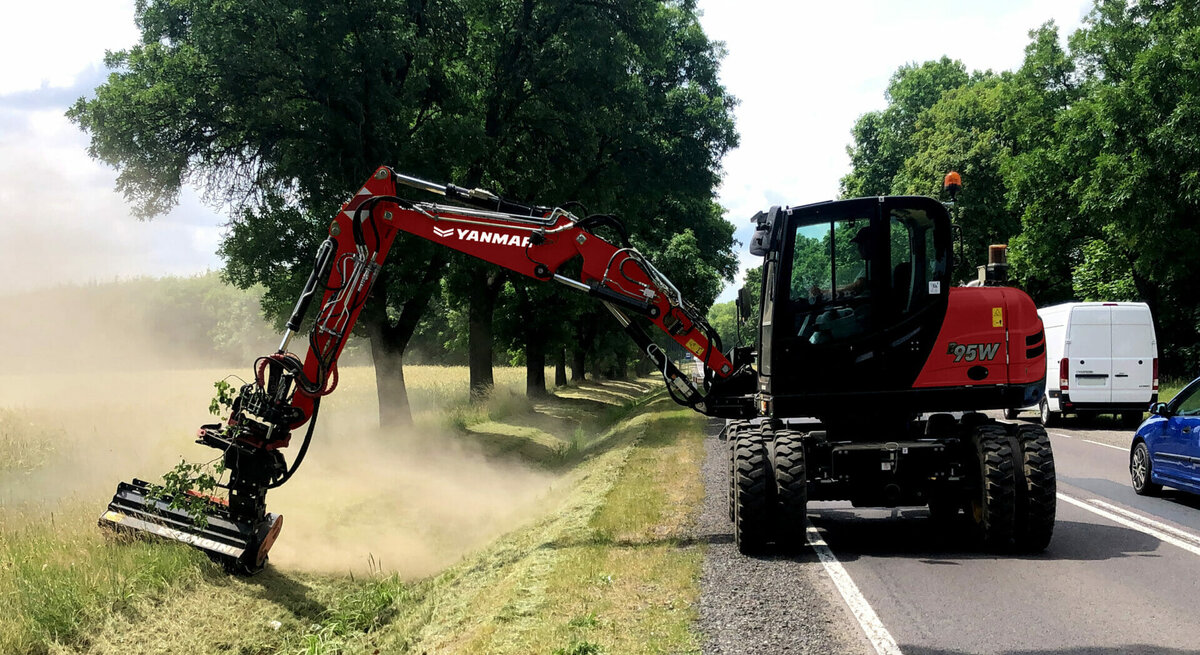

B95W (9,100-9,500kg operating weight) – Offering unbeatable performance and total versatility, the B95W compact wheeled excavator is ideal for heavy load lifting and precise placement in construction, infrastructure development, agriculture and landscaping applications.
Powered by a 3.6 litre, 74.4kW 4-cylinder turbocharged diesel engine, the B95W is EU Stage V-compliant. Thanks to the addition of a charge cooler, diesel particulate filter (DPF), Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) technology as standard, emissions are minimised. Common rail and direct injection help to boost power and fuel efficiency, allowing the B95W to reach travel speeds of up to 36km/h (22mph).
Designed from the ground up to set the standards in loading and carrying capability, the B95W features four independent hydraulic circuits for complete multifunctionality. Achieving a digging force of 45.8kN (arm) and 40.9kN (bucket), with dig depths of up to 4,100-4,200mm and a maximum reach of 7,570 7,740mm (depending on specification), operators benefit from class-leading performance figures, while a high-pressure hydrostatic transmission provides smooth power delivery without unnecessary traction interruption.
To maximise stability with heavy and bulky loads on uneven terrains, the B95W can be fitted with a front dozer blade, rear stabilisers or a rear support blade to achieve effortless levelling. The dozer blade can be specified with Yanmar’s optional float function to make levelling, filling and removing debris both quick and simple.

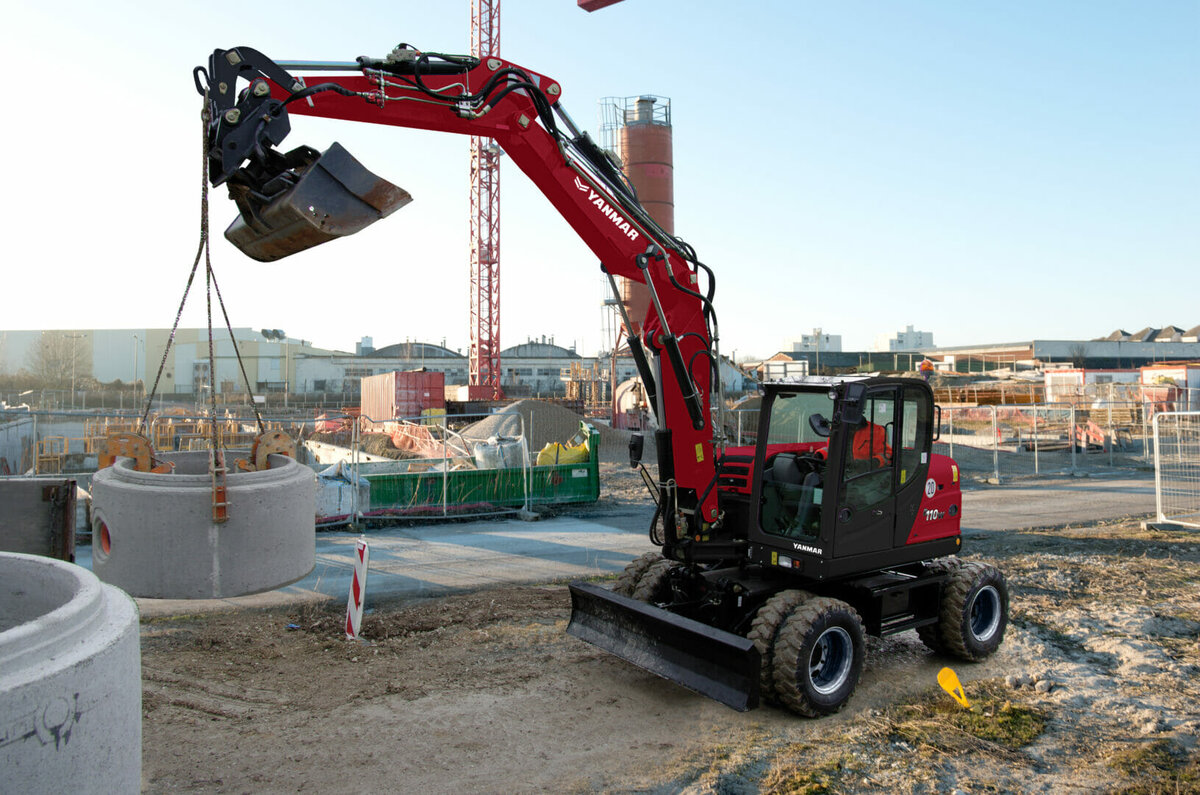

B110W (11,000kg operating weight) – The perfect combination of speed, stability and outstanding productivity, the Yanmar B110W wheeled excavator is renowned for its power and precision. Delivering class-leading performance and featuring state-of-the-art operator technologies, the impressive model is the perfect solution for urban jobsites, infrastructure projects and landscaping.
Driven by a 116hp (85kW) Tier 4 Final compliant engine, featuring an improved combustion and injection system, diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) technology, emissions are reduced by up to 90%. Operators benefit from 400Nm torque at 1600rpm and a top speed of up to 36km/h.
With a digging depth (blade lowered) of 4,440mm (4,810mm with the optional dipperstick), digging reach of 8,640mm and ability to lift loads of up to 2.81 tonnes to a height of three metres, the B110W is perfect for a wide range of applications. The laterally-installed engine, unique axle design with minimum tail swing, 13° pendulum angle and low centre of gravity delivers world-class stability, especially for craning work.
The B110W uses four independent hydraulic circuits. The working hydraulic circuit uses an axial-piston variable displacement pump for a working pressure of 330 bar in combination with load sensing and a load-independent flow distribution system (LUDV). This allows for smooth, simultaneous and independent control of all movements, regardless of load.
For fingertip precision, the B110W utilises electrical proportional activation of the hydraulic circuits with an ergonomic control layout. A 7-inch anti-reflective display provides a comprehensive overview of machine data and status. Operators can also boost their efficiency thanks to Yanmar’s Smart Control System, which optimises excavator power for a variety of different applications.
Available to order through approved dealers nationwide, more information about Yanmar’s next generation range of compact wheeled loaders can be found at:
